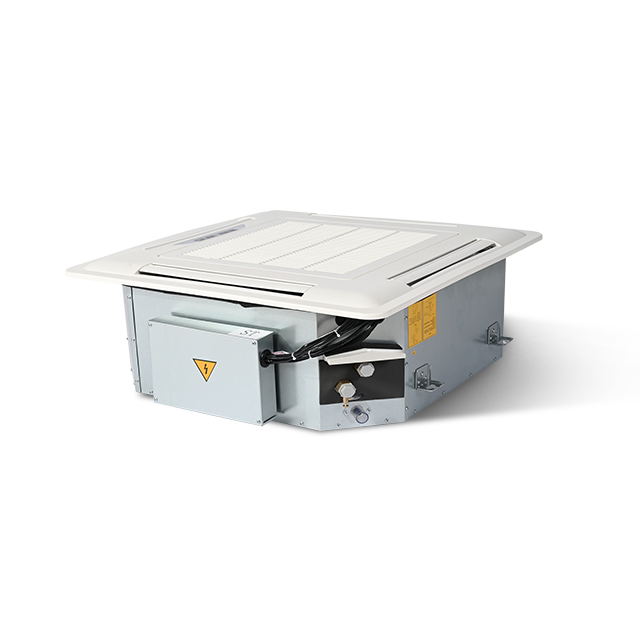

Water-based cassette fan coil systems have become the standard choice for modern commercial spaces, offering several advantages over traditional air-based or refrigerant systems. Designed to provide both heating and cooling, these units are ideal for maintaining comfortable indoor temperatures without the inefficiencies and environmental concerns of refrigerant-based systems. Here’s why they should be your top choice:
Begin by estimating the thermal load based on your space’s size, insulation, and temperature preferences. For example, in a commercial office with a floor area of 100m², assuming a cooling load requirement of 340W per m², the total required cooling capacity would be:
Cooling load = 100 m² * 340 W/m² = 34,000 W (or 34 kW)
Once the load is calculated, choose a unit with a cooling capacity that matches or exceeds this requirement. For example, the FP-170 model provides a cooling capacity of 6.3 kW. You would need approximately 5 to 6 units to meet the total load of 34 kW.

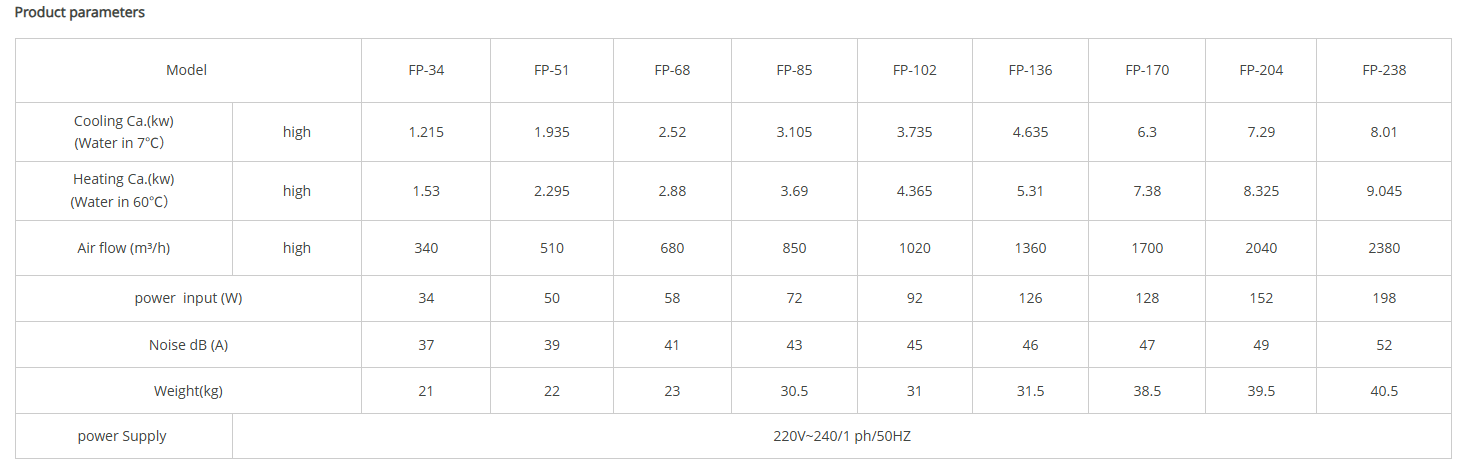

| Model | Cooling Capacity (kW) | Air Flow (m³/h) | Noise Level (dB) |
|---|---|---|---|
| FP-170 | 6.3 | 1700 | 47 |
Energy consumption is key to long-term operational savings. Let’s calculate the energy consumption of the FP-170 model over a year. If it runs for 1,000 hours:
Energy consumption = 126 W * 1,000 hours = 126 kWh/year
Ready to get started? Contact our team to receive a customized solution tailored to your commercial space’s heating and cooling needs. We’ll help you select the perfect water-based fan coil units to improve comfort and energy efficiency in your building.
Cooling load = Area * Cooling capacity per m²If you need assistance with this calculation, our team is here to help!
